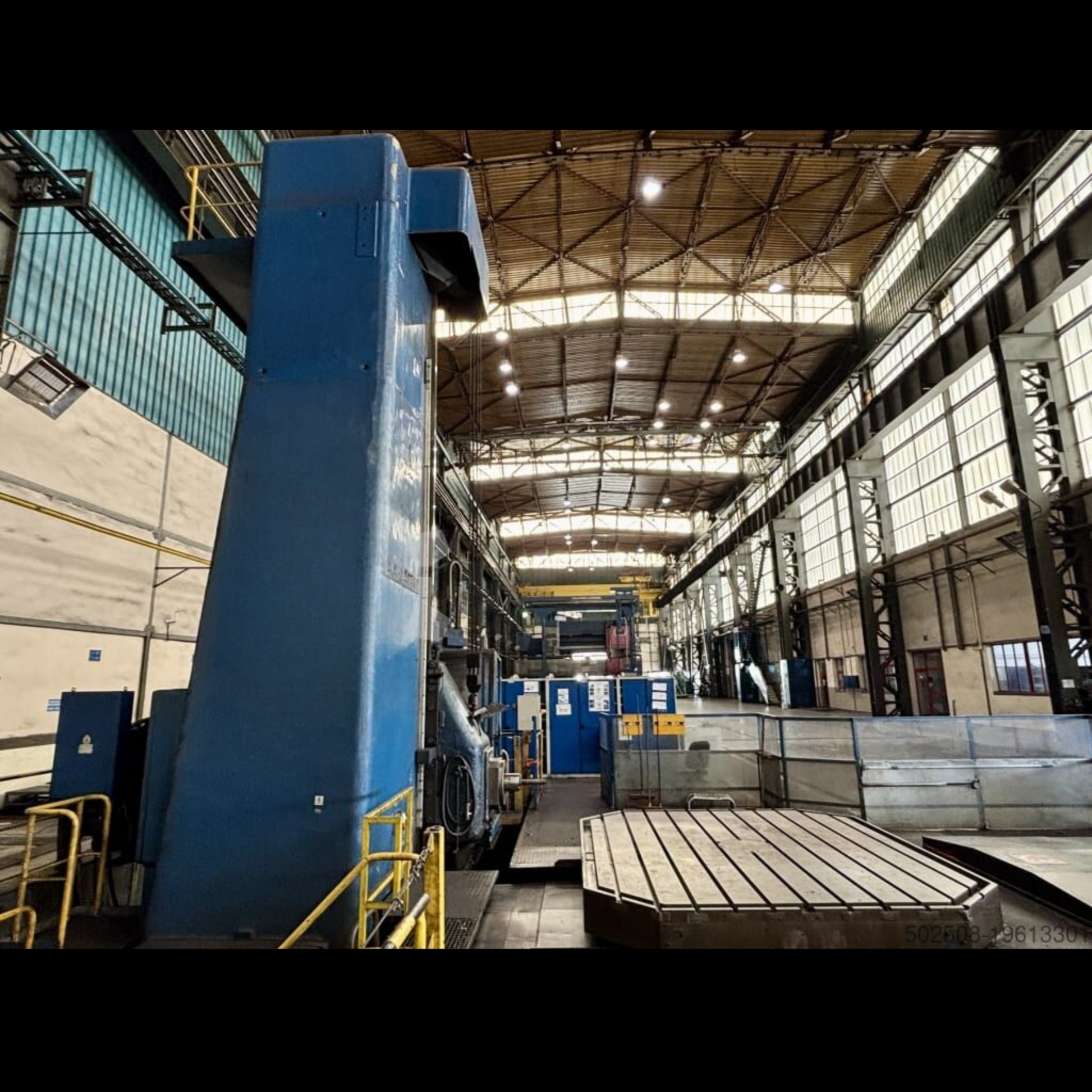

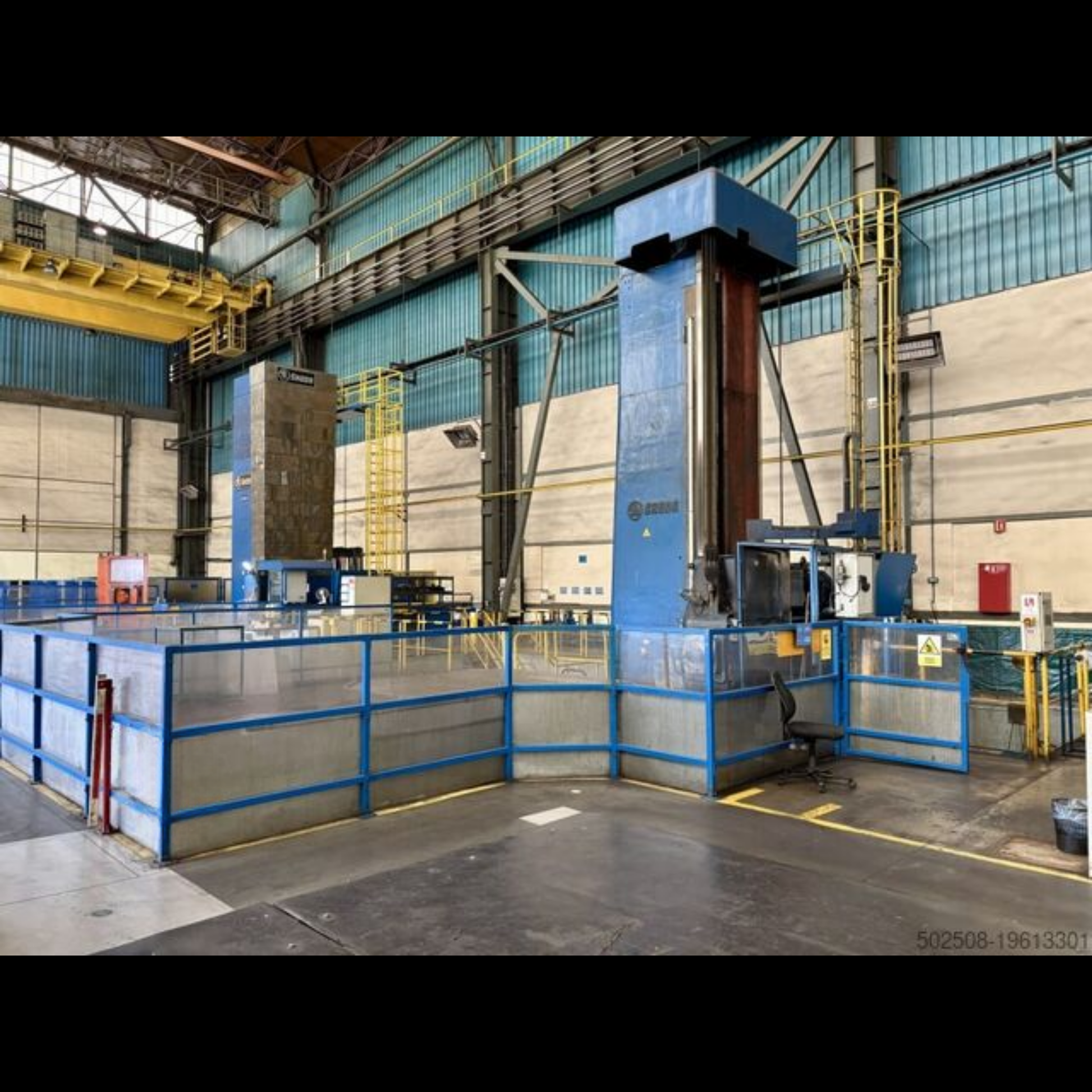

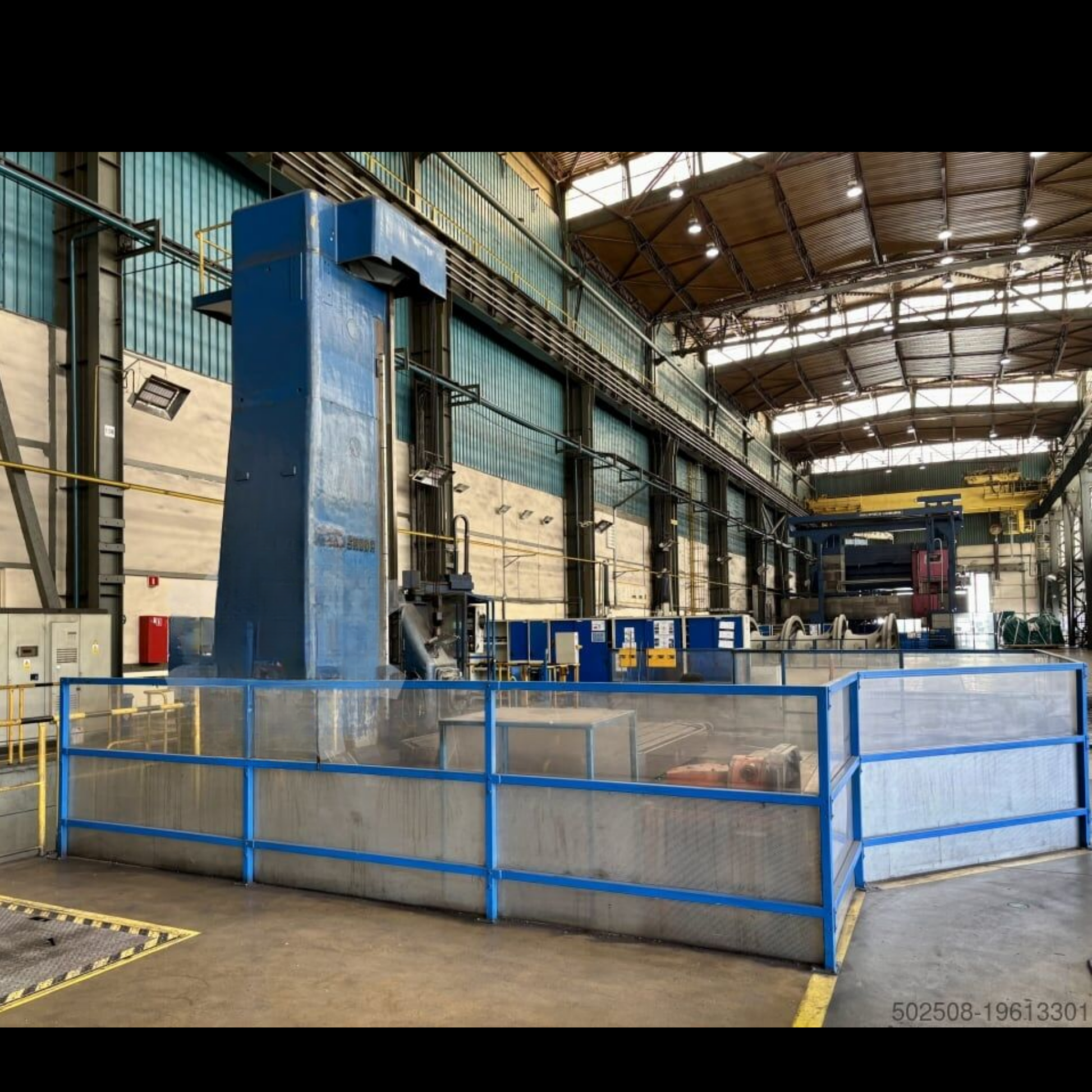

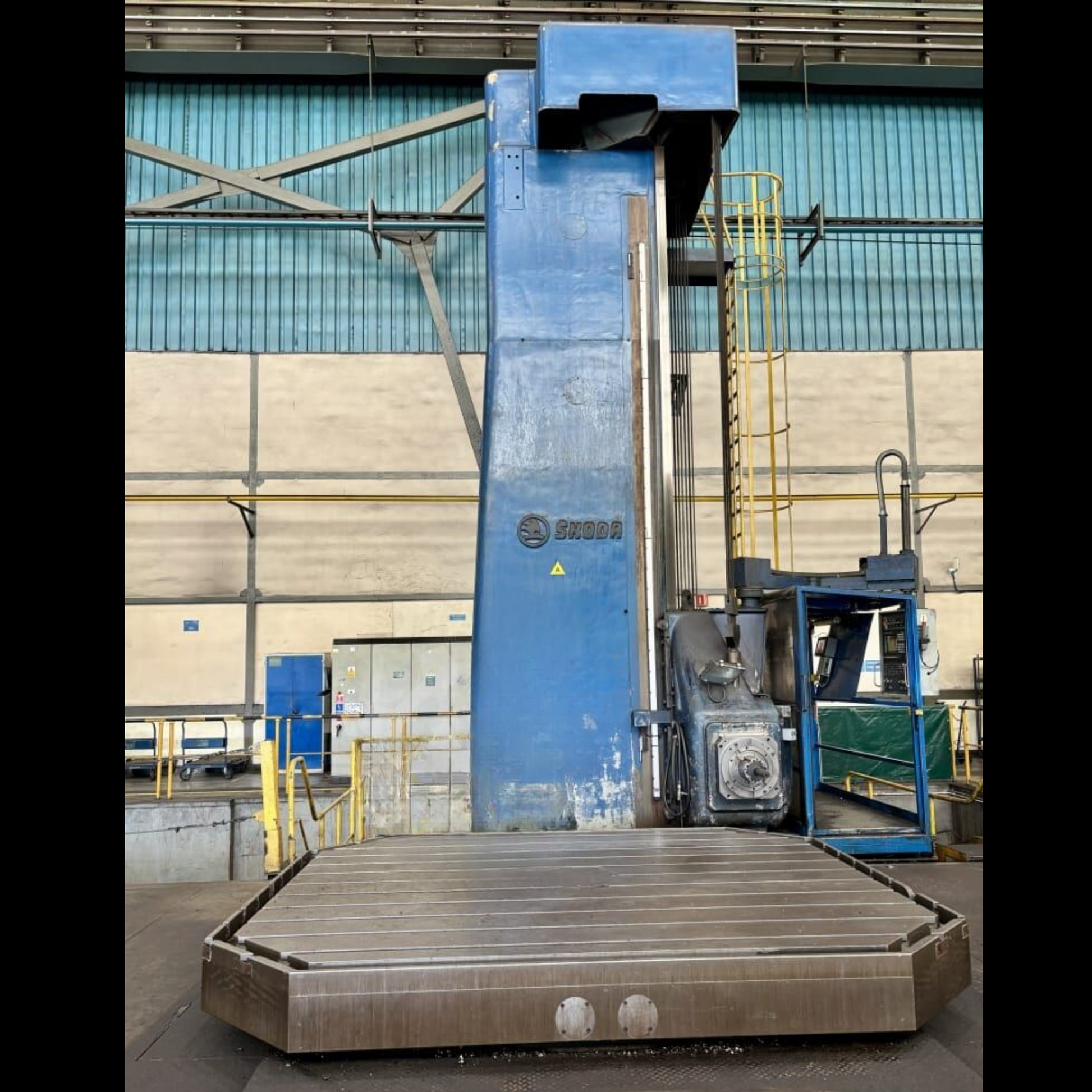

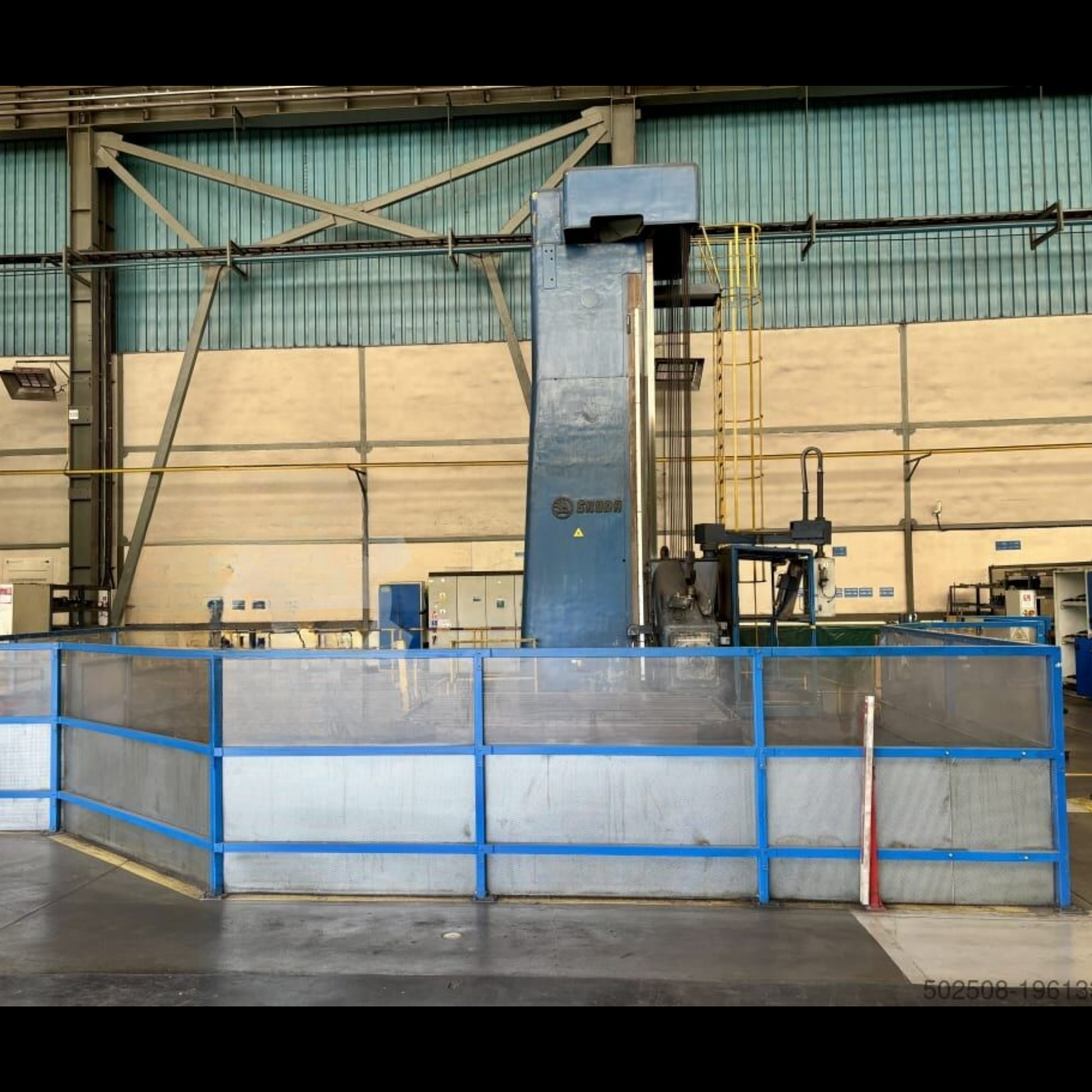

Skoda W200 CNC Floor Type Milling Machine With Siemens 840C Control
Pgebisw Avxzen R E Dujp Rotary Table Dimension 3,500 x 3,000mm (11 'T' Slots). Maximum Table Load 50 Ton. Main Motor Power 75kW. Maximum Depth Of Boring 'Z'=2,000mm, Maximum Drive Of Ram Spindle Sleeve 'W'=1,600mm, Vertical Travel Of Spindle On Column 'Y'=4,700mm, Transversal Column Travel On Bed 'X'=5,900mm. Minimum Height Of Spindle Axis Over Base Plate 1,100mm. Ram Dimension 520 x 520mm. Spindle Taper ISO 60/50. Spindle Ø200mm. S/No. Ob 19351.
With Angle Heads, Coolant Paper Filtration System, Oil Skimmer, Chiller, Signal Tower, Interlocked Guarding, Hand Wheel, Service Ladder & Manuals.
